Please see our new model the
Portable Topsoil Screener SLG-78

PVG-12V-72 (SOLD OUT)

Topsoil screener PVG-12V-72

  • Screens two products
  • Works with buckets up to 66" wide
  • Complete with sloping legs.
  • 4'x6' screen deck.
  • Weighs 1,200 lbs

Price $6,395 USD with dual batteries.




The consumer spoke and we at OMH ProScreen listened.

You wanted a low cost, entry level, medium production, portable vibratory screener, therefore we went to work designing and building one for you.

Welcome to our PVG-12V-72 6ft (NEW for 2012). This portable vibratory screener uses 12 volt deep cycle batteries to power our 4000 rpm vibratory motor. Our center pivoting spring loaded screen deck measures 4 ft x 6 ft, moving up and down 3 inches, while moving back 1 inch creating a reversed vibratory shake action.

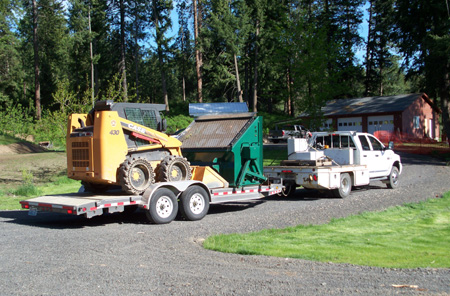

Constructed for skidsteers, bucket tractors and compact loaders with up to 66" buckets, this heavy duty vibratory screener weighs 1200 lbs and is manufactured out of 3/16 plate with 1/4" reinforcing. This unit was designed at only 78" inches in width so that it can be loaded cross ways on your trailer along with your machine.

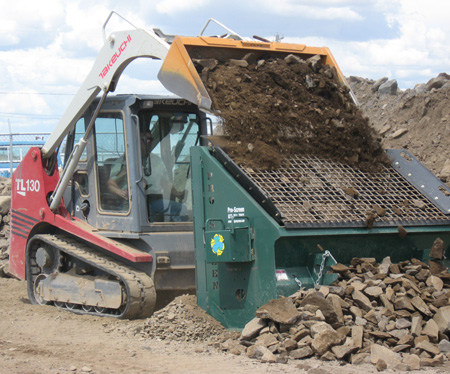

Screening and recycling sand, soils, gravels and various other products is not a problem for the PVG-12V-72. This unit can be fitted with 10 additional screens from 1/4 inch up to 6 inches.  In addition, there is the option to purchase an extra battery and battery box to extend your screener run time to 11 hours.

  • Topsoil screener PVG-12V-72
  • Topsoil screener PVG-12V-72 slide 2
  • Topsoil screener PVG-12V-72 slide 3
  • Topsoil screener PVG-12V-72 slide 4
  • Topsoil screener PVG-12V-72 slide 5
  • Topsoil screener PVG-12V-72 slide 6
  • Topsoil screener PVG-12V-72 slide 7
  • Topsoil screener PVG-12V-72 slide 8
  • Topsoil screener PVG-12V-72 slide 9
